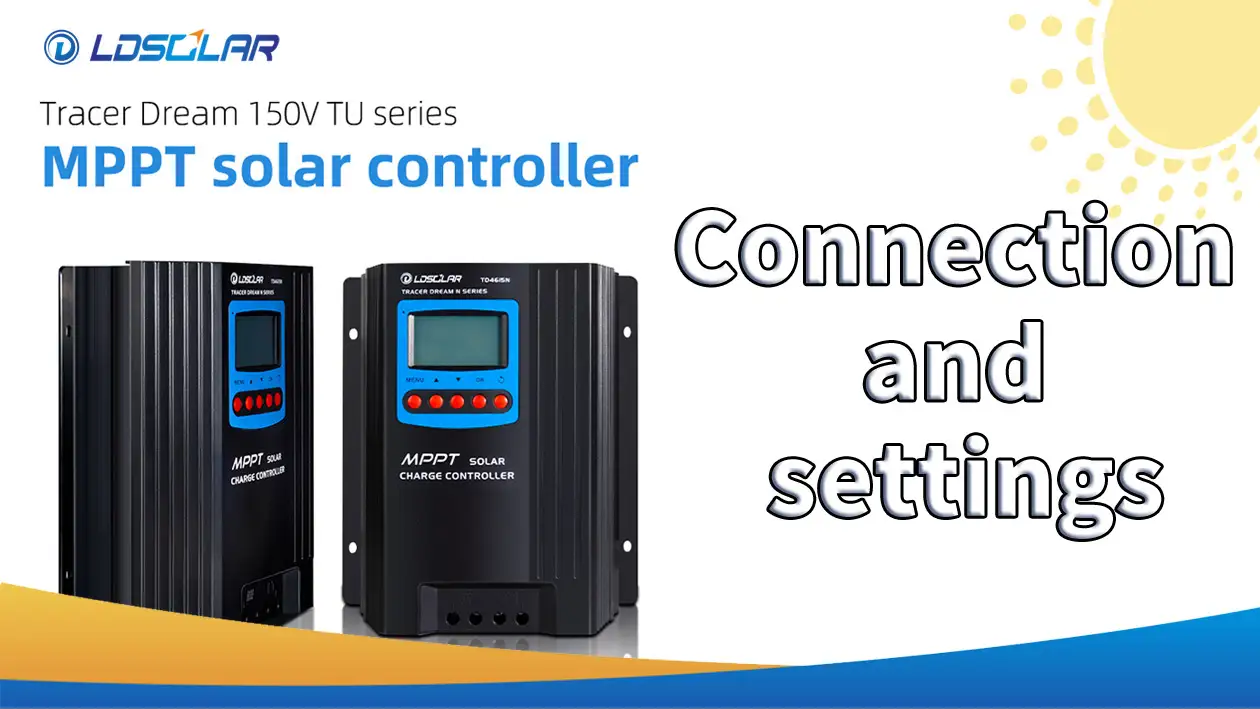

In this video, we will introduce how to connect and use the TD4615TU MPPT controller

ldsolar China Connection and setting of MPPT TD150V Solar controller manufacturers- manufacturers-ldsolar,Profession——Focus on solar controller

Click here to download data

Inquiry

download

TD150V MPPT Specification.pdf

Write a Review

Tracer Dream 150V TU Series

Tracer Dream 150V TU Series adopts MPPT technology.Max.150V solar input,12V/24V/48V auto work.It's also ran by 32 bits CPU,so stability and speed can be guaranteed. Based on the synchronous rectifier technology,the transfer efficiency of circuit can be increased up to 98.5%and the Pmax tracking accuracy up to 99. 5%.So our MPPT can trace the accurate Pmax in the shortest time (10~20s) ,even when the sunlight changes rapidly. It can perfectly handle extreme weather or weak sunlight.It adopted by common negative design and it can start from solar,Widely used in solar station and big solar home system.

Product Description

01
Golden Ratio Asymmetric Design
The controller adopts asymmetrical design, and the LCD screen is located at the golden section, with a harmonious proportion and beautiful appearance.
02
150V solar panel input
Continuous output at full load and no attenuation, all for high efficiency. about efficiency.
03
Main control chip
ARM architecture, high-quality 32-bit main control chip, improve charging efficiency comprehensively.

China Connection and setting of MPPT TD150V Solar controller manufacturers- manufacturers-ldsolar 3

04
Standard Bluetooth monitoring function
Use mobile phone APP to connect to the TD150V solar controller to realize remote real-time monitoring of data, without missing important information .
05
Protection process
Insulates,protects and seals eletronic parts.It can form a shiny protective film on the circuit board, So as to improve the reliablility of ldsolar controller and guarantee their service life
06
Power Limited Protection
When the power of solar charging exceeds the rated power of the controller, Ldsolar controller will limit the input power, and work at the rated power of controller without damaging the controller.

Product details

Multiple ports

China Connection and setting of MPPT TD150V Solar controller manufacturers- manufacturers-ldsolar 4

Humanized operation buttons

China Connection and setting of MPPT TD150V Solar controller manufacturers- manufacturers-ldsolar 5

Upgraded three-proof paint process

China Connection and setting of MPPT TD150V Solar controller manufacturers- manufacturers-ldsolar 6

Product parameter

China Connection and setting of MPPT TD150V Solar controller manufacturers- manufacturers-ldsolar 7
