Use LDSOLAR Controller Build Off-grid Solar System

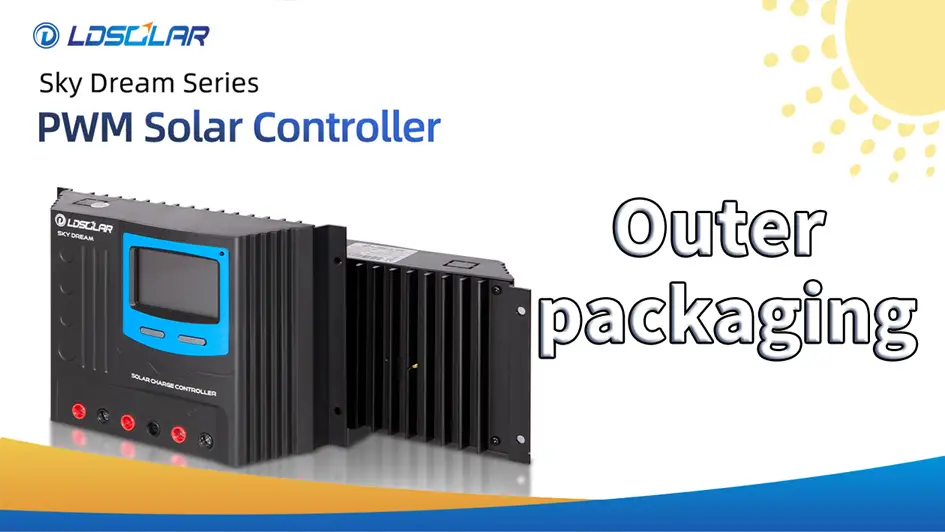

PWM solar controller Sky Dream outer packaging 1
PWM solar controller Sky Dream outer packaging 1

PWM solar controller Sky Dream outer packaging

PWM solar controller Sky Dream outer packaging

Sky Dream series product base on in series PWM mode, with full digital technology and LCD display, auto run mode with large application range, such as off-grid solar home system, traffic indicator, solar street lights, solar garden lights and so on. The intelligent charging process has been optimized for long battery life and improved system performance.

Features

v 32bits CPU, sampling precision is higher, operation speed is faster

v 12V/24VDC Automatic Identification System Voltage

v 3 stages PWM charging: Bulk, Boost, Float

v Sealed, Gel, Flooded battery selection procedure

v Humanized LCD displaying, dynamic display operation data and working state.

v Built-in operation log, account system working state

v Multi load control mode: Normal mode, Sensor mode, Timer mode

v Temperature Compensation Function and Controller Over Temperature Protection Function

v Fullest digital protection functions: Overcharging, Over-discharging, Overload, Short Circuit, Reverse Connection, Controller Over-Temperature and so on.

v Max 16mm2 connectors, colorful connector distinguish plus and minus poles.

v 5V 1A USB output


Click here to download data


    oops...!

    no product data.

    Go to homepage
    SD PWM Specification.pdf
    SD PWM Specification.pdf



    PWM solar controller Sky Dream outer packaging 2


    Sky Dream Series

    Sky Dream Series (SD in short) is our newly designed PWM solar controllers. Its specialty lies in the inner 32 bits CPU,which enables the controllers to work faster and more stable. Besides,our unique black&Red big terminals design facilitate your connection in real application. It can be applied in the solar system which has higher standard over the stability and reliability.



    Product Description

    • 01
      Auto temperature compensation
      The controller adopts asymmetrical design, and the LCD screen is located at the golden section, with a harmonious proportion and beautiful appearance.
    • 02
      Free USB Charging
      Support the maximum 1A charging current, charge your mobile device faster ,10A / 20A with 2 USB ports, 30A / 40A with 1 USB port.We also supply 10A / 20A with 4USB models
    • 03
      Main control chip
      ARM architecture, high-quality 32-bit main control chip , improve charging efficiency comprehensively.
    PWM solar controller Sky Dream outer packaging 3
    • 04
      Distinctive heat dissipation character
      This time, we also made a brand-new upgrade design for the SD series heat dissipation system, and the back MOS tubes are evenly distributedWhile ensuring a stylish and simple appearance, the heat dissipation is further improved.
    • 05
      Battery
      Support lithium battery and multiple battery type
    • 06
      Patent
      Open mold custom designed for DC large diameter ports suitable for solar systems requiring large diameter wires to reduce line loss and voltage drop



    Product details


    Large-diameter red

    and black terminal


    ++
    PWM solar controller Sky Dream outer packaging 4

    Free USB Charging

    ++
    PWM solar controller Sky Dream outer packaging 5

    ABS anti-fall shell

    ++
    PWM solar controller Sky Dream outer packaging 6


    Product parameter

    PWM solar controller Sky Dream outer packaging 7










    PWM solar controller Sky Dream outer packaging 8








    PWM solar controller Sky Dream outer packaging 9


    PWM solar controller Sky Dream outer packaging 10
