PWM solar controller Ocean Dream outer packaging introduction 1
PWM solar controller Ocean Dream outer packaging introduction 1

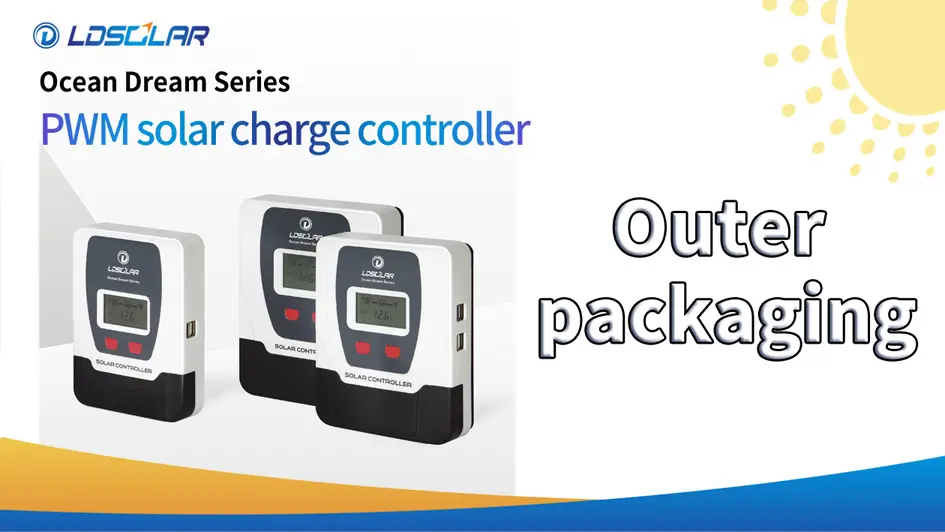

PWM solar controller Ocean Dream outer packaging introduction

The video for the PWM controller Ocean Dream  packaging comprising a packaging size

Ocean Dream Series product base on in series PWM mode, with full digital technology and LCD display, auto run mode with large application range, such as off-grid solar home system, traffic indicator, solar street lights, solar garden lights and so on. The intelligent charging process has been optimized for long battery life and improved system performance.

Features

❖ 32bits CPU, sampling precision is higher, operation speed is faster

❖ 12V/24VDC Automatic Identification System Voltage

❖ 3 stages PWM charging: Bulk, Boost, Float

❖ Sealed, Gel, Flooded, LiFePO4, Li(NiCoMn)O2 battery selection procedure

❖ Humanized LCD displaying, dynamic display operation data and working state.

❖ Built-in operation log, account system working state

❖ Multi load control mode: Normal mode, Sensor mode. Timer mode

❖ Temperature Compensation Function and Controller Over Temperature Protection Function

❖ Fullest digital protection functions: Overcharging, Over-discharging, Overload, Short Circuit, Reverse Connection, Controller Over-Temperature and so on.

❖ colorful connector distinguish plus and minus poles.

❖ 5V 2.4A USB output (10A 20A 5V 1.5A and 48V 5V1A)


Click here to download data

    oops...!

    no product data.

    Go to homepage
    OD PWM Specification.pdf
    OD PWM Specification.pdf

    PWM solar controller Ocean Dream outer packaging introduction 2

    Ocean Dream Series
    Ocean Dream Series (OD in short) is our newest designed PWM solar controllers. Its specialty lies in the inner 32 bits CPU,which enables the controllers to work faster and more stable. It built 4USB port and a screw driver inside.Besides,our unique black&Red big terminals design facilitate your connection in real application. The white frosted plastic shell is very natural no matter where it is placed in your home or RV.

    Product Description
    System Voltage 12V/24V/48V
    • 01
      Hidden design
      The slide cover design protects the interface and the wire by extending the lower lip.
    • 02
      Red and black terminal
      Open mold custom designed for DC large diameter ports suitable for solar systems requiring large diameter wires to reduce line loss and voltage drop.
    • 03
      Built-in screwdriver
      Worry-free use,It is there whenever you need it.
    PWM solar controller Ocean Dream outer packaging introduction 3
    • 04
      Battery
      Supports lithium batteries and a variety of battery types.
    • 05
      Main control chip
      ARM architecture, high-quality 32-bit main control chip, improve charging efficiency comprehensively.
    • 06
      Simple Design,Good looking
      The OD series adopts rounded corners and a simple appearance design.
    Product details

    Large-diameter red and black terminals

    ++
    PWM solar controller Ocean Dream outer packaging introduction 4

    Free USB Charging

    ++
    PWM solar controller Ocean Dream outer packaging introduction 5

    Built-in screwdriver

    ++
    PWM solar controller Ocean Dream outer packaging introduction 6


    Product parameter
    PWM solar controller Ocean Dream outer packaging introduction 7
    PWM solar controller Ocean Dream outer packaging introduction 8
    PWM solar controller Ocean Dream outer packaging introduction 9
    PWM solar controller Ocean Dream outer packaging introduction 10
