Use LDSOLAR Controller Build Off-grid Solar System

Good quality factory Max.100V Solar Input mppt solar charge controller

1.Advanced MPPT control algorithm to minimize the MPP loss rate and loss time

2.Wide MPP operating voltage range

3.Limit charging power & current over rated range.When the solar panel power exceeds a certain level and the charging current is larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.

4.Support the lead-acid,gel,flooded with the needed Temp. compensation and support lithium batteries start from solar panel

5.Real-time working record function

Inquiry

Write a Review

Good quality factory Max.100V Solar Input mppt solar charge controller 2

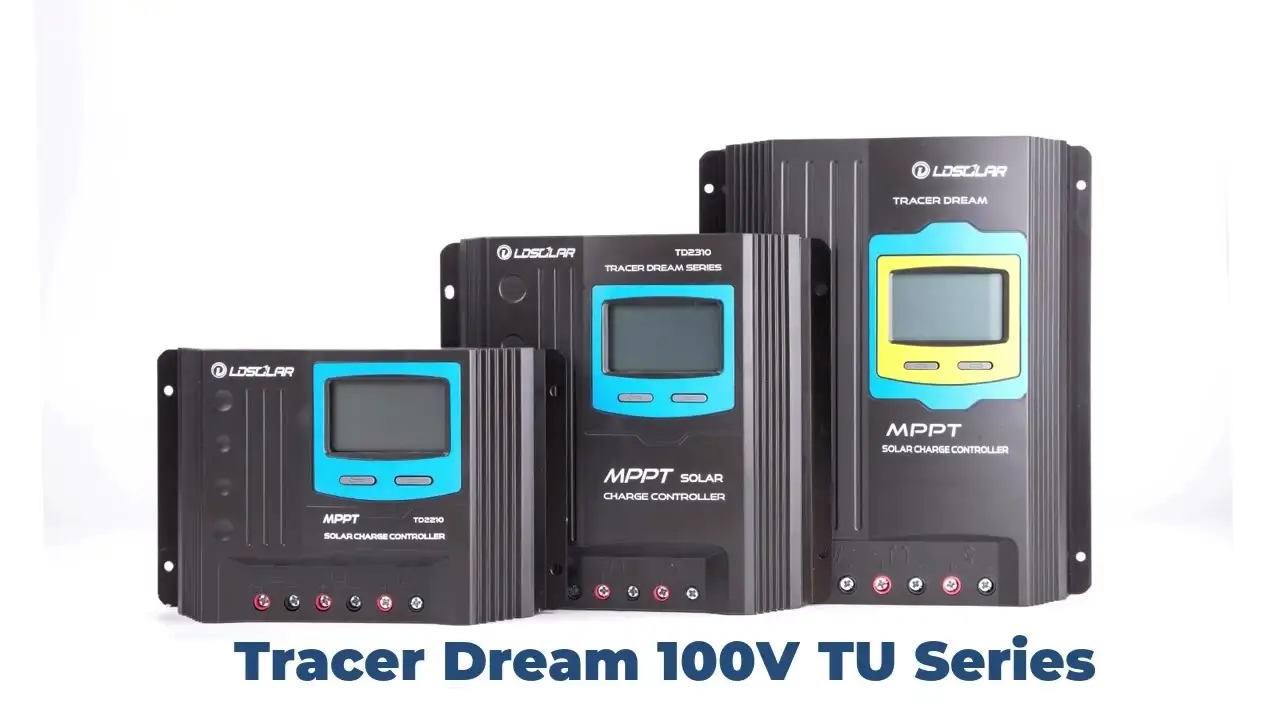

Tracer Dream 100V TU

Tracer Dream 100V TU Series adopts MPPT technology. Max.100V solar input,12V/24V auto work.It's also ran by 32 bits CPU,so stability and speed can be guaranteed. Based on the synchronous rectifier technology,the transfer efficiency of circuit can be increased up to 98.5%and the Pmax tracking accuracy up to 99. 5%.So our MPPT can trace the accurate Pmax in the shortest time (10~20s) ,even when the sunlight changes rapidly. It can perfectly handle extreme weather or weak sunlight.It adopted by common negative design and it can start from solar,Widely used in RV, ship and so on.

Product Description

01
Golden Ratio Asymmetric Design
The controller adopts asymmetrical design, and the LCD screen is located at the golden section, with a harmonious proportion and beautiful appearance. It' s natural to put it anywhere in your home or in RVs.
02
High Tracking Accuracy High Conversion Efficiency
TD series controllers use the latest MPPT algorithm to improve tracking efficiency and speed, reduce energy It can improve the utilization ratio of PWM controller by 20% to 30%.
03
Power Limited Protection
When the power of solar charging exceeds the rated power of the controller, Ldsolar controller will limit the input power, and work at the rated power of controller without damaging the controller.

Good quality factory Max.100V Solar Input mppt solar charge controller 3

04
Insulates,protects and seals eletronic parts.
It can form a shiny protective film on the circuit board, So as to improve the reliablility of ldsolar controller and guarantee their service life.
05
Optional internal/external Bluetooth module
You can chooseTD100V series MPPT controller with an external Bluetooth module or a built-in Bluetooth module,which can realize the mobile phone APP connection to remotely monitor real-time data without missing all important data.
06
Support lithium battery, start from solar
Application is wider, especially in many fields such as lithium battery systems, RVS , communication base stations, etc.

Product details

Patented red and black ports

Good quality factory Max.100V Solar Input mppt solar charge controller 4

ABS anti-fall shell

Good quality factory Max.100V Solar Input mppt solar charge controller 5

Temperature sensor interface

Good quality factory Max.100V Solar Input mppt solar charge controller 6

Product parameter

Good quality factory Max.100V Solar Input mppt solar charge controller 7
