Use LDSOLAR Controller Build Off-grid Solar System

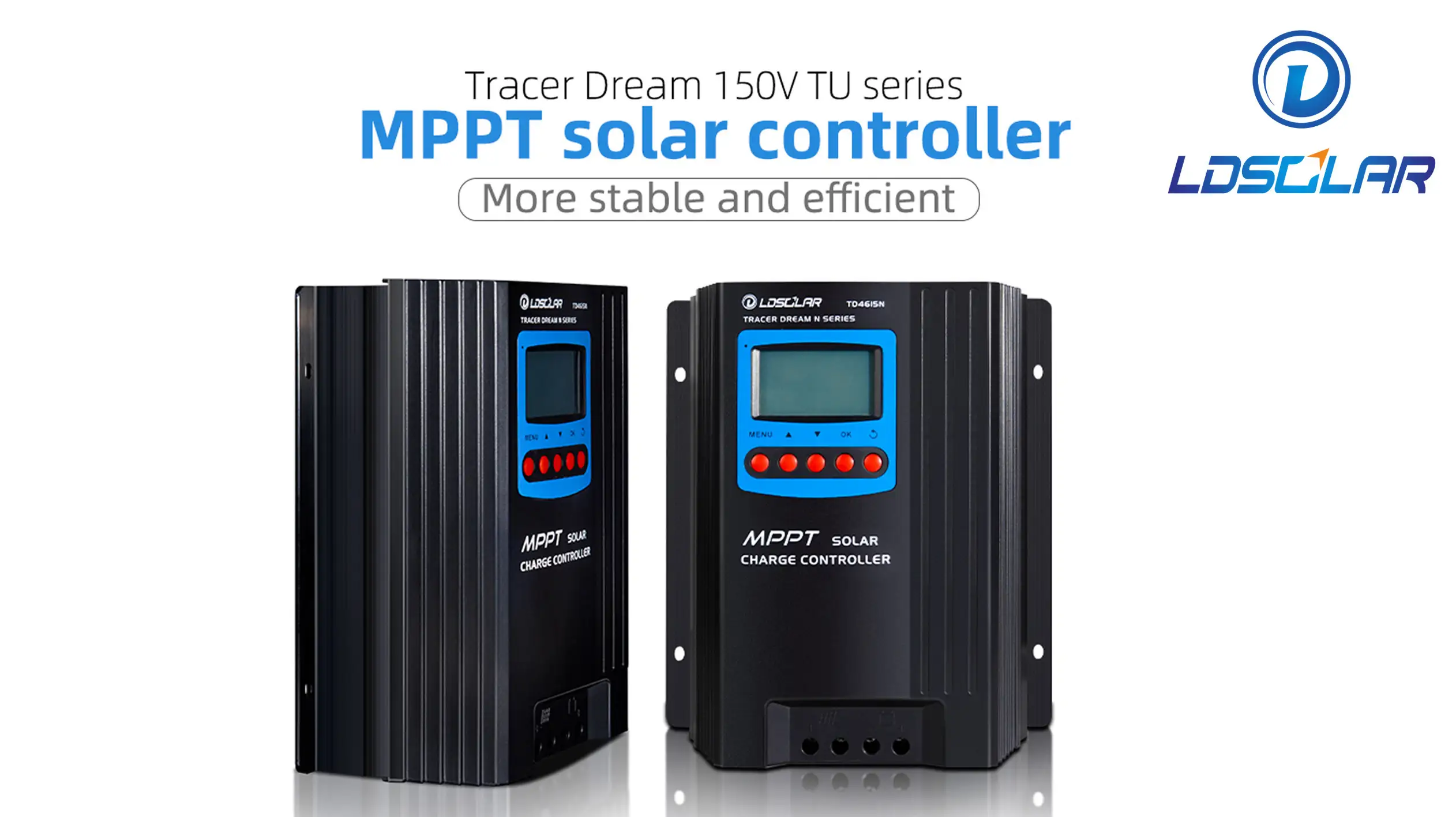

Tracer Dream 150V TU Series MPPT Solar Controller 1
Tracer Dream 150V TU Series MPPT Solar Controller 1

Tracer Dream 150V TU Series MPPT Solar Controller

Tracer Dream 150V TU Series MPPT Solar Controller.

Features:

TD 150V series of product adopt synchronous rectification technology and common negative design, and equipped with LCD. The advanced MPPT control algorithm can quickly and accurately track the maximum power point of photovoltaic array in any environment, obtain the maximum energy of solar panel in real time, and improve the energy utilization of solar energy system. It can be used in communication base station, household system, street light system and monitoring system and so on. Perfect electronic protection function and patent terminal structure can avoid the damage of components and due to system fault and installation error.

l Advanced MPPT technology, fast and stable track the Maximum Power Point, tracking accuracy 99.5%.

l Adopt Synchronous Rectification Technology, significantly improve the transfer efficiency of circuit, maximum 98%.

l With double peak or multi peak power tracking technology, when the solar panels is shaded or part of solar panels is damaged, multiple peaks will appear in the I-V curve, and the controller can still accurately track to the maximum power point.

l PV array limited input power function, to ensure that the controller dose not overload operation under any condition. When the power of solar panels is too high and the charging current is more than rated current, the controller automatically reduces the charging power to make it work under the rated power.

l Wide range of Maximum Power Point of PV array, Max PV input voltage 150V

l 12/24V/48VDC System voltage automatic recognition.

l Humanized LCD displaying, multi button combination operation, dynamic display operation data and working state

l Built-in operation log, account system working state

l Multi load control mode: Normal Mode, Sensor Mode, Timer and Sensor Mode

l 3 stages charging mode, Sealed, Gel, Flooded, Lithium several types battery charging procedure selection

(After the lithium battery is selected, the system voltage will not be recognized automatically)

l Temperature Compensation Function(After the lithium battery is selected, there is no temperature compensation function).

l Accumulation function of charging and discharging, actual time display power generation function.

l Fullest digital protection functions: Reverse connection, Overcharging, Over-discharging, Over voltage, Overload, Short circuit, Overtemperature.

l 25mm2 connectors, red and black connector distinguish plus and minus.

l Using standard Modbus communication protocol based on RS-485 communication bus, maximize satisfaction different occasions communication need.

l Optional Blue-tooth or WiFi communication module, through the mobile phone APP can view and set the parameters of the controller in real time.


Click here to download data


    oops...!

    no product data.

    Go to homepage
    TD150V MPPT Specification.pdf
    TD150V MPPT Specification.pdf



    Tracer Dream 150V TU Series MPPT Solar Controller 2


    Tracer Dream 150V TU Series
    Tracer Dream 150V TU Series adopts MPPT technology.Max.150V solar input,12V/24V/48V auto work.It's also ran by 32 bits CPU,so stability and speed can be guaranteed. Based on the synchronous rectifier technology,the transfer efficiency of circuit can be increased up to 98.5%and the Pmax tracking accuracy up to 99. 5%.So our MPPT can trace the accurate Pmax in the shortest time (10~20s) ,even when the sunlight changes rapidly. It can perfectly handle extreme weather or weak sunlight.It adopted by common negative design and it can start from solar,Widely used in solar station and big solar home system.


    Product Description

    • 01
      Golden Ratio Asymmetric Design
      The controller adopts asymmetrical design, and the LCD screen is located at the golden section, with a harmonious proportion and beautiful appearance.
    • 02
      150V solar panel input
      Continuous output at full load and no attenuation, all for high efficiency. about efficiency.
    • 03
      Main control chip
      ARM architecture, high-quality 32-bit main control chip, improve charging efficiency comprehensively.
    Tracer Dream 150V TU Series MPPT Solar Controller 3
    • 04
      Standard Bluetooth monitoring function
       Use mobile phone APP to connect to the TD150V solar controller to realize remote real-time monitoring of data, without missing important information .
    • 05
      Protection process
      Insulates,protects and seals eletronic parts.It can form a shiny protective film on the circuit board, So as to improve the reliablility of ldsolar controller and guarantee their service life
    • 06
      Power Limited Protection
      When the power of solar charging exceeds the rated power of the controller, Ldsolar controller will limit the input power, and work at the rated power of controller without damaging the controller.


    Product details


    Multiple ports

    ++
    Tracer Dream 150V TU Series MPPT Solar Controller 4

    Humanized operation buttons

    ++
    Tracer Dream 150V TU Series MPPT Solar Controller 5

     Upgraded three-proof paint process

    ++
    Tracer Dream 150V TU Series MPPT Solar Controller 6



    Product parameter
    Tracer Dream 150V TU Series MPPT Solar Controller 7



    Tracer Dream 150V TU Series MPPT Solar Controller 8
