Use LDSOLAR Controller Build Off-grid Solar System

Chinese manufacturers Max.75V Solar Input mppt solar charge controller

1. With the advanced dual-peak or multi-peak tracking technology, when the solar panel is shadowed or part of the panel fails resulting in multiple peaks on the I-V curve, the controller is still able to accurately track the maximum power point.

2. Advanced MPPT technology, with efficiency no less than 99.5%

3. Maximum DC/DC conversion efficiency of 98%

4. Ultra-fast tracking speed and guaranteed tracking efficiency

5. Advanced MPPT control algorithm to minimize the MPP loss rate and loss time

Inquiry

Write a Review

Chinese manufacturers Max.75V Solar Input mppt solar charge controller 2

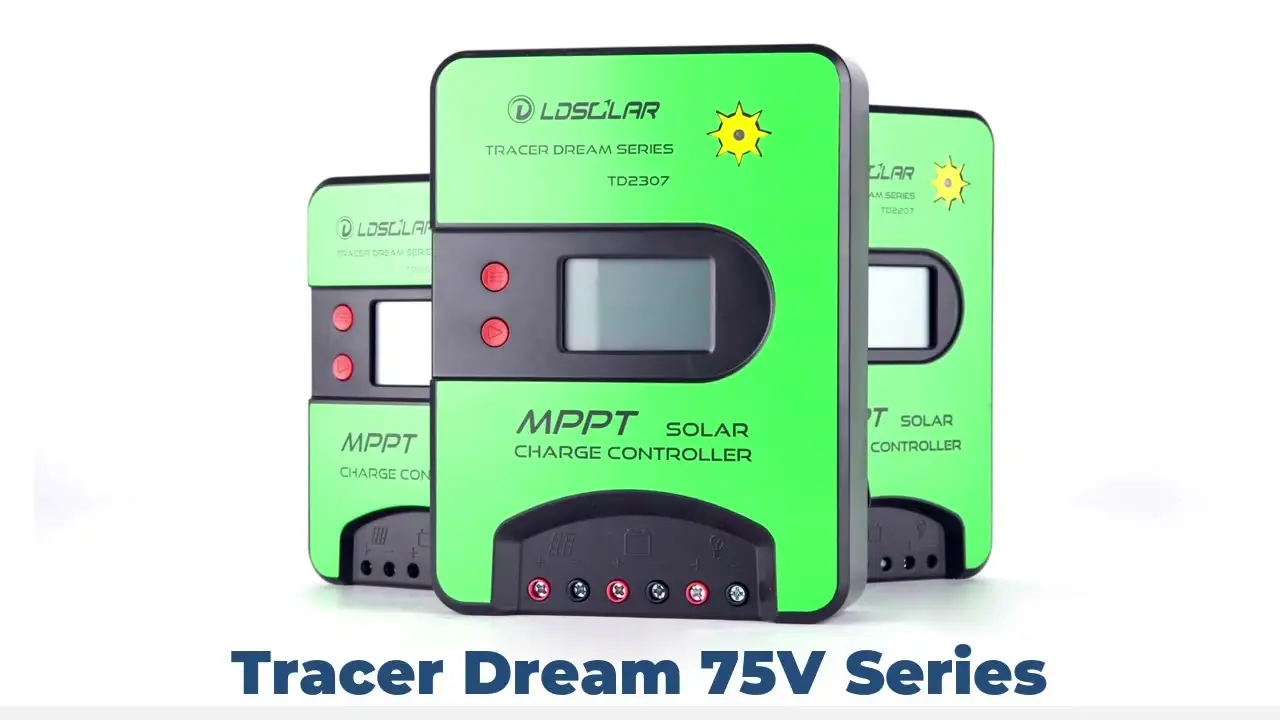

Tracer Dream 75V Series

Tracer Dream 75V Series adopts MPPT technology. It's also ran by 32 bits CPU,so stability and speed can be guaranteed. Based on the synchronous rectifier technology,the transfer efficiency of circuit can be increased up to 98.5%and the Pmax tracking accuracy up to 99. 5%.So our MPPT can trace the accurate Pmax in the shortest time (10~20s) ,even when the sunlight changes rapidly. It can perfectly handle extreme weather or weak sunlight.

Product Description

01
High Conversion Efficiency
TD series controllers use the latest MPPT algorithm to improve tracking efficiency and speed ,reduce energy loss
02
Distinctive heat dissipation character
TD 75V series adopts aluminum alloy radiator for heat dissipation,industrial grade aluminum alloy heat dissipation,longer life and more stable
03
Power limited protection
When the power of solar charging exceeds the rated power of the controller,Ldsolar controller will limit the input power,and work at the rated power of controller without damaging the controller

Chinese manufacturers Max.75V Solar Input mppt solar charge controller 3

04
Upgrade of starting from solar panel
Fully support lithium batteries after the upgrade is complete .After the lithium battery is protected, it can be reactivated by the solar panel, so that the entire system automatically resumes work
05
Built-in bluetooth/WIFI module
Optional built-in bluetooth or WIFI module， after this module is connected with cell phone APP, it can monitor real-time data of controllers without missing important data.
06
Insulates,protects and seals eletronic parts
It can form a shiny protective film on the circuit board, So as to improve the reliablility of ldsolar controller and guarantee their service life.

Product details

Patented red and black ports

Chinese manufacturers Max.75V Solar Input mppt solar charge controller 4

ABS anti-fall shell

Chinese manufacturers Max.75V Solar Input mppt solar charge controller 5

External temperature sensor

Chinese manufacturers Max.75V Solar Input mppt solar charge controller 6

Product parameter

Chinese manufacturers Max.75V Solar Input mppt solar charge controller 7

Chinese manufacturers Max.75V Solar Input mppt solar charge controller 8
