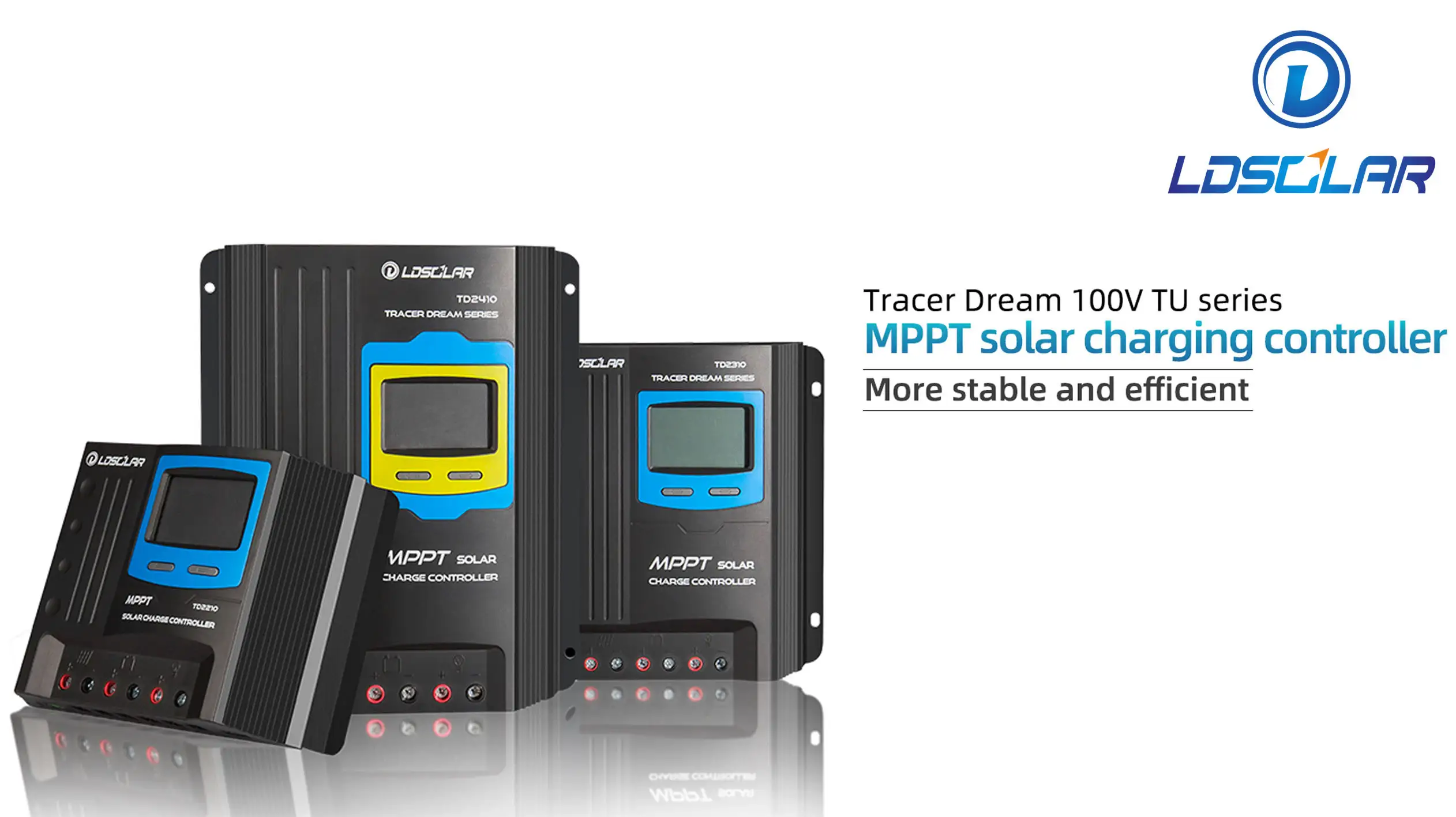

Tracer Dream 100V TU Series adopts MPPT technology. Max.100V solar input, 12V/24V auto work. It's also ran by 32 bits CPU, so stability and speed can be guaranteed. Based on the synchronous rectifier technology, the transfer efficiency of circuit can be increased up to 98.5%and the Pmax tracking accuracy up to 99. 5%. So our MPPT can trace the accurate Pmax in the shortest time (10~20s) , even when the sunlight changes rapidly. It can perfectly handle extreme weather or weak sunlight.It adopted by common negative design and it can start from solar, Widely used in RV, ship and so on.


Click here to download data

    oops...!

    no product data.

    Go to homepage
    TD100V MPPT Specification.pdf
    TD100V MPPT Specification.pdf

    Appearance

    Golden Ratio Asymmetric Design

    The controller adopts asymmetrical design, and the LCD screen is located at the golden section, with a harmonious proportion and beautiful appearance. It' s natural to put it anywhere in your home or in RVs.Tracer Dream 100V Series MPPT Solar Charge Controller1 2


    USB

    Free USB Charging

    Support the maximum 1A charging current, charge your mobile device faster 20A , 30A with 1 USB port

    Tracer Dream 100V Series MPPT Solar Charge Controller1 3


    Main control chip

    ARM architecture, high-quality 32-bit main control chip, improve charging efficiency comprehensively.

    Make your system more stable and efficient, the main control chip adopts Stmicroelectronics, and the other components adopt Samsung and Fenghua Hi-tech components to ensure the stability and life of the controller.

    The running program of the upgradeable frame structure guarantees the low loss of the controller and makes it more efficient.

    Tracer Dream 100V Series MPPT Solar Charge Controller1 4



    Efficient

    High Tracking Accuracy

    High Conversion Efficiency

    TD series controllers use the latest MPPT algorithm to improve tracking efficiency and speed, reduce energy It can improve the utilization ratio of PWM controller by 20% to 30%.

    Tracer Dream 100V Series MPPT Solar Charge Controller1 5



    Heat dissipation

    Distinctive heat

    dissipation character

    This time, we also made a brand-new upgrade design for the TD100V series heat dissipation system, and the back MOS tubes are evenly distributed.

    While ensuring a stylish and simple appearance, the heat dissipationis further improved.

    Tracer Dream 100V Series MPPT Solar Charge Controller1 6



    Protect

    Power Limited Protection

    When the power of solar charging exceeds the rated power of the controller, Ldsolar controller will limit the input power,  and work at the rated power of controller without damaging the controller.

    In the system that the MPPT controller of Ldsolar is installed, the power of solar panel can be more than the rated power of controller. But cannot exceed 2 times.

    Tracer Dream 100V Series MPPT Solar Charge Controller1 7



    Application

    Support lithium battery, start from solar

    Application is wider, especially in many fields such as lithium battery systems, RVS , communication base stations, etc.

    Tracer Dream 100V Series MPPT Solar Charge Controller1 8


    Fast Tracking

    Good Low Light

    Fast Trackin

    Under low light conditions, Ldsolar controller can still track to the MPP quickly.

    In the case of light changes during the day, It can track in time and accurately.

    It can achieve good balance between low disturbance amplitude and quick response and also can identify the MPP in the case of multiple peaks.

    Tracer Dream 100V Series MPPT Solar Charge Controller1 9



    ModelTD2210TUTD2310TUTD2410TU
    System Voltage12V/24V DC auto
    Working voltage range8~32V
    Max.PV open circuit voltage100V(Min.working temperature)95V(25℃)
    MPPT voltage range(Battery voltage+2V)~75V
    Discharge circuit voltage drop≤0.25V
    Self-consumption<23mA
    Rated charge current20A30A40A
    Rated discharge current20A30A40A
    Max.PV input power

    260W/12V

    520W/24V

    390W/12V

    780W/24V

    520W/12V

    1040W/24V

    GroundingCommon positive
    Battery typeSealed(Default)/Gel/Flood/Lithium
    LVD※*11.0V ADJ 9V...12V ; x2/24V ; x4/48V
    LVR※*12.6V ADJ 11V...13.5V ;x2/24V ; x4/48V
    Float Voltage※*13.8V ADJ 13V... 15V ; x2/24V ; M/48V
    Boost Voltage※*14.4V ADJ 13V...17V ;x2/24 ; x4/48V
    battery voltage less than 12.6v auto boost 2hours
    Battery Over Voltage Protection16.5V ; x2/24V ; x4/48V
    USB Output5VDC/1A 1个
    Temperature Consumption#For 12Vsystem:-24mV /°C ;x2/24V ; x4/48V
    RS485 interfaceOptional
    Relative humidity≤95%, N.C.
    WorkingTemperature-20°C~+50°C℃(Product can work continuously at full load)
    LCD temperature range-20°C~+70°C
    Waterproof gradeIP32
    Mounting hole sizeΦ5mm
    Terminals10mm²/8AWG16mm²/6AWG25mm²/4AWG
    Weight0.87Kg1.2Kg1.7Kg
    Overall dimension(mm)200*127*54mm195*183*54mm232.5*200.1*54mm


    Tracer Dream 100V Series MPPT Solar Charge Controller Data Download>>
