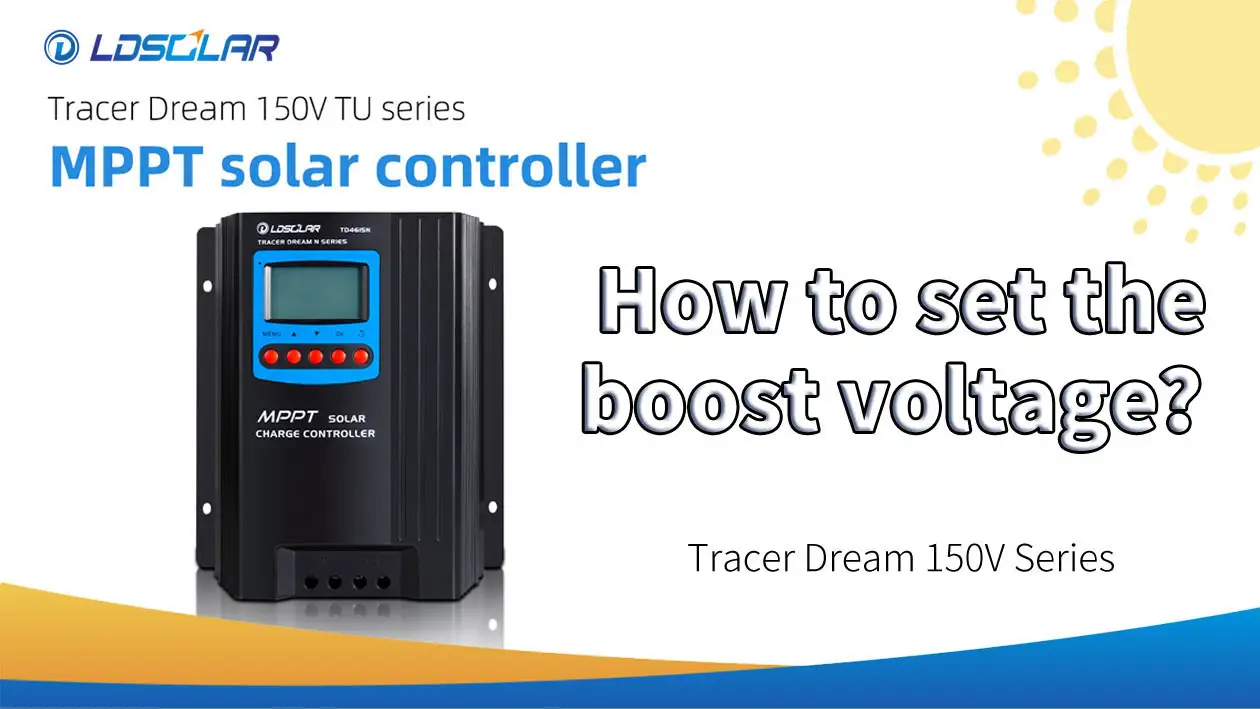

How to set the boost voltage?-TD150V

According to the requirements of use, we successfully connected solar charge controller to solar panel and battery. Connect the battery first, and then connect solar panel. During the connection process, make sure that the positive and negative terminals are correctly connected.

How to set the boost voltage?
Pressing the left and right/up and down buttons, it can switch to the boost voltage interface we need to set.
After reaching the boost voltage setting interface, long press the menu button, after the parameter flashes, enter the setting state.

Click here to download data
